OBD charts

[hudiy]

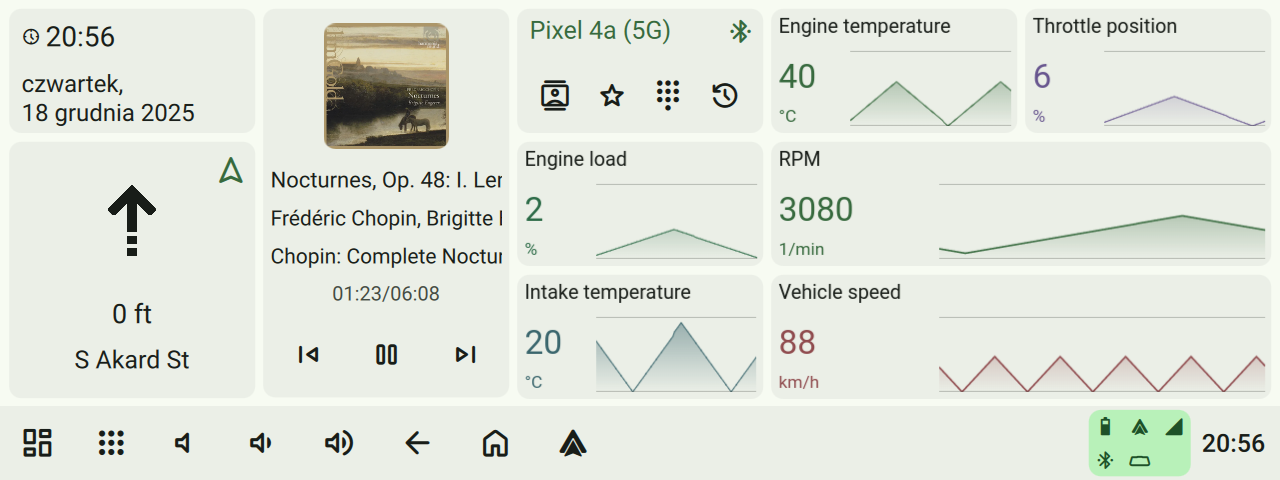

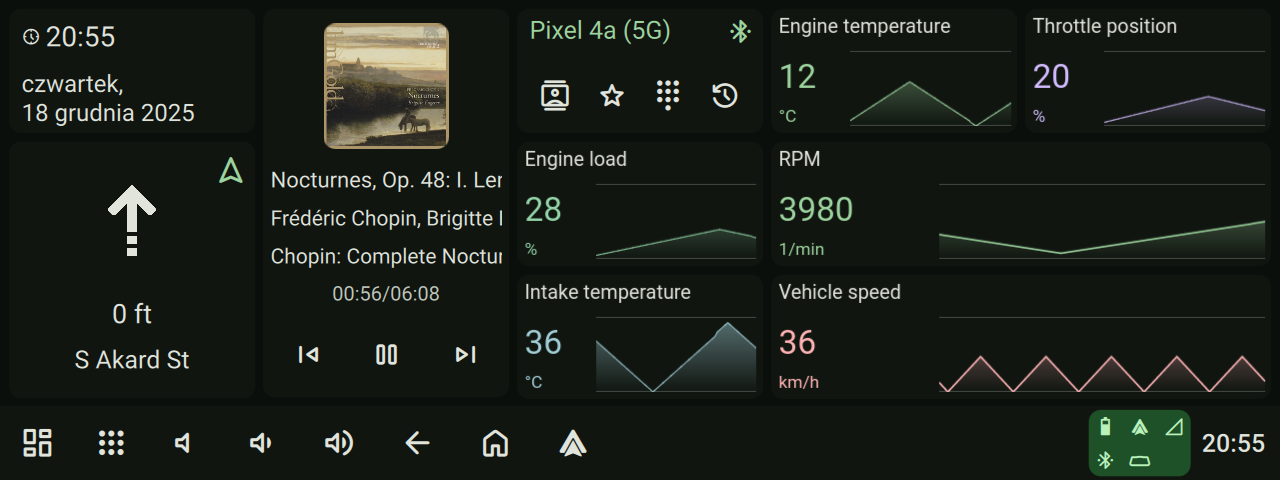

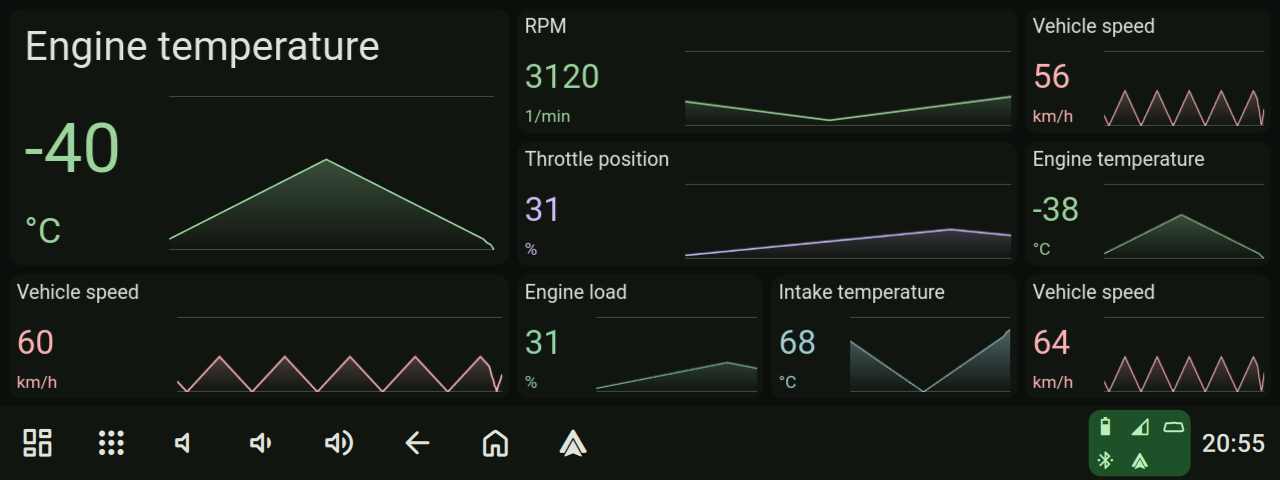

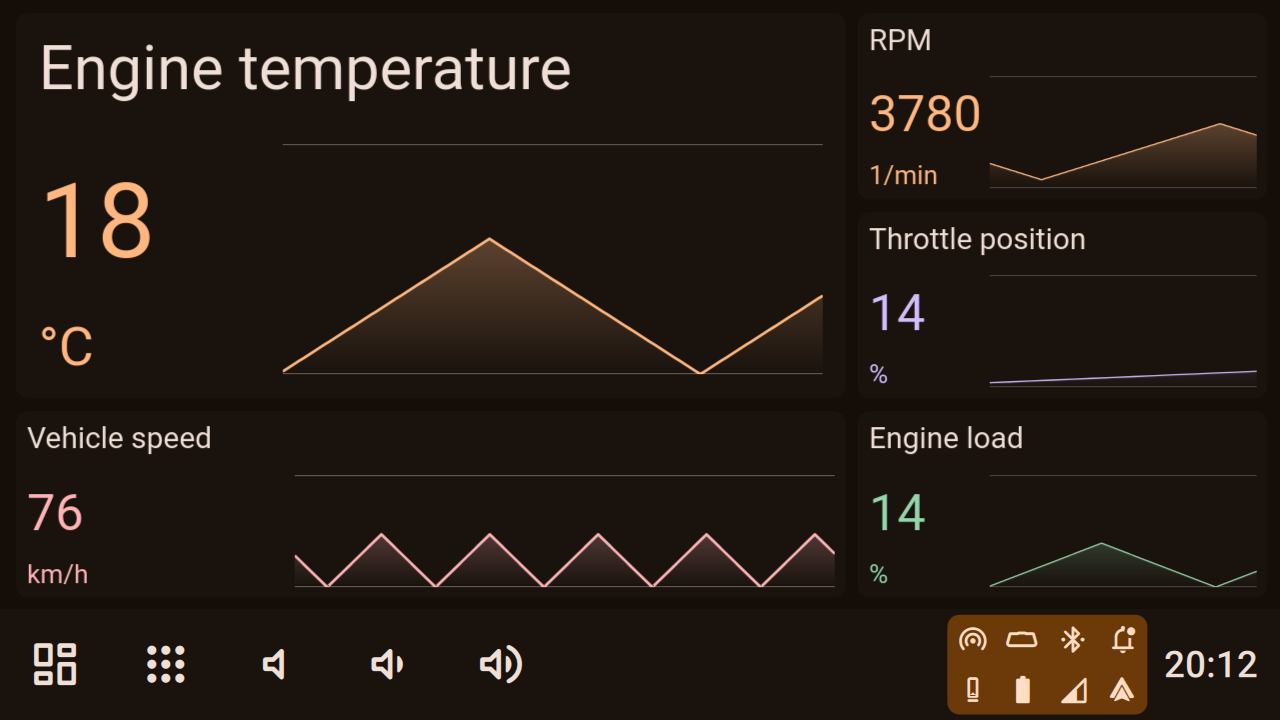

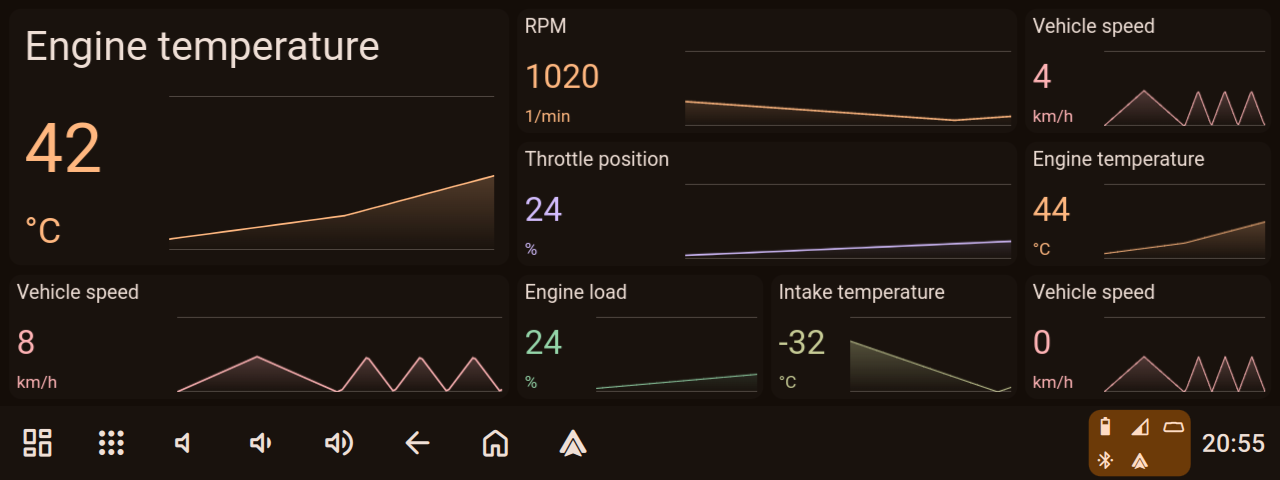

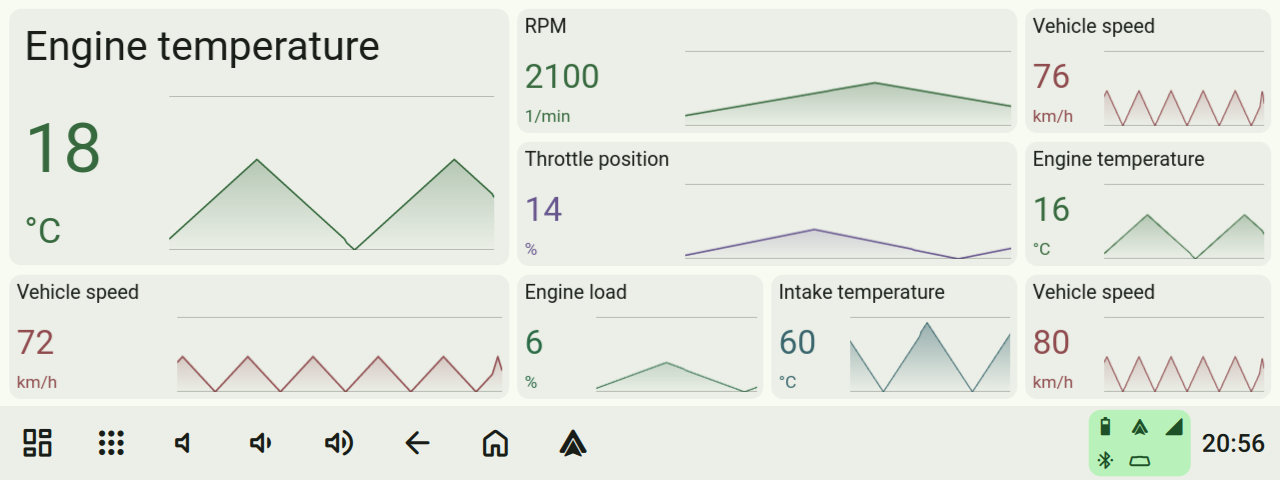

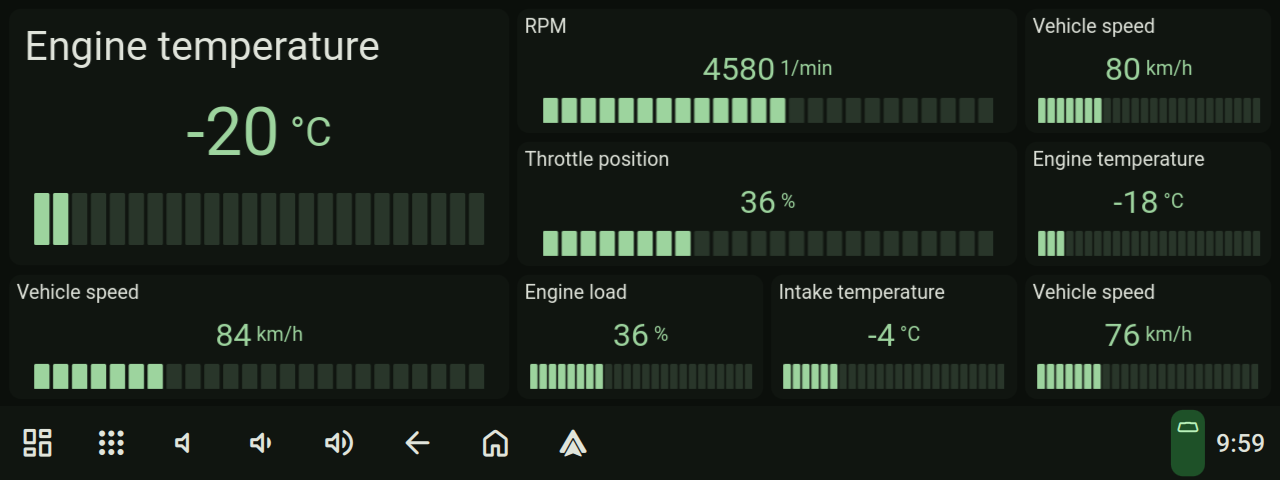

We have prepared a set of OBD chart examples displaying OBD-II data. These examples are available on our GitHub and are ready to download. You can find more information in the README file.

https://github.com/wiboma/hudiy/tree/ma ... obd_charts









[hudiy]

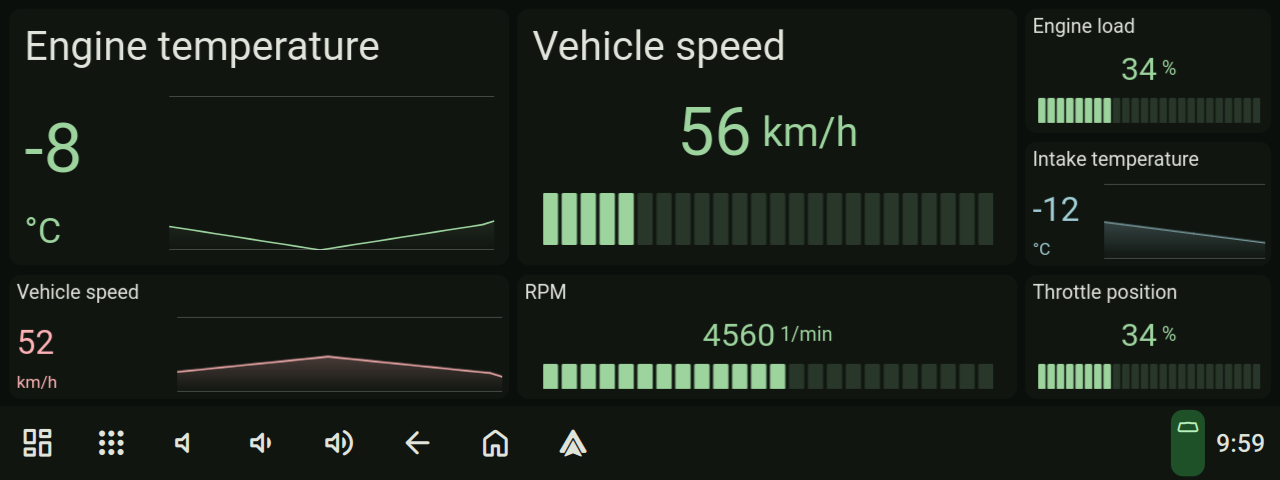

We added another style of the widgets:







[wkl3968]

Nice work!!

[hudiy]

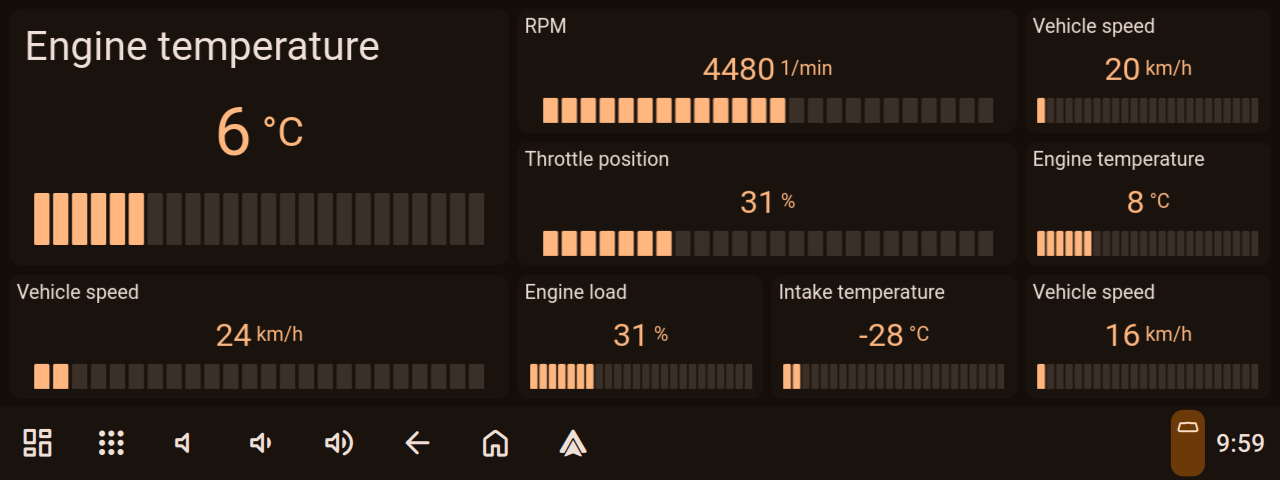

We added new styles to the obd charts example.

https://github.com/wiboma/hudiy/tree/ma ... tes/gauges
https://github.com/wiboma/hudiy/tree/ma ... es/gauges2
