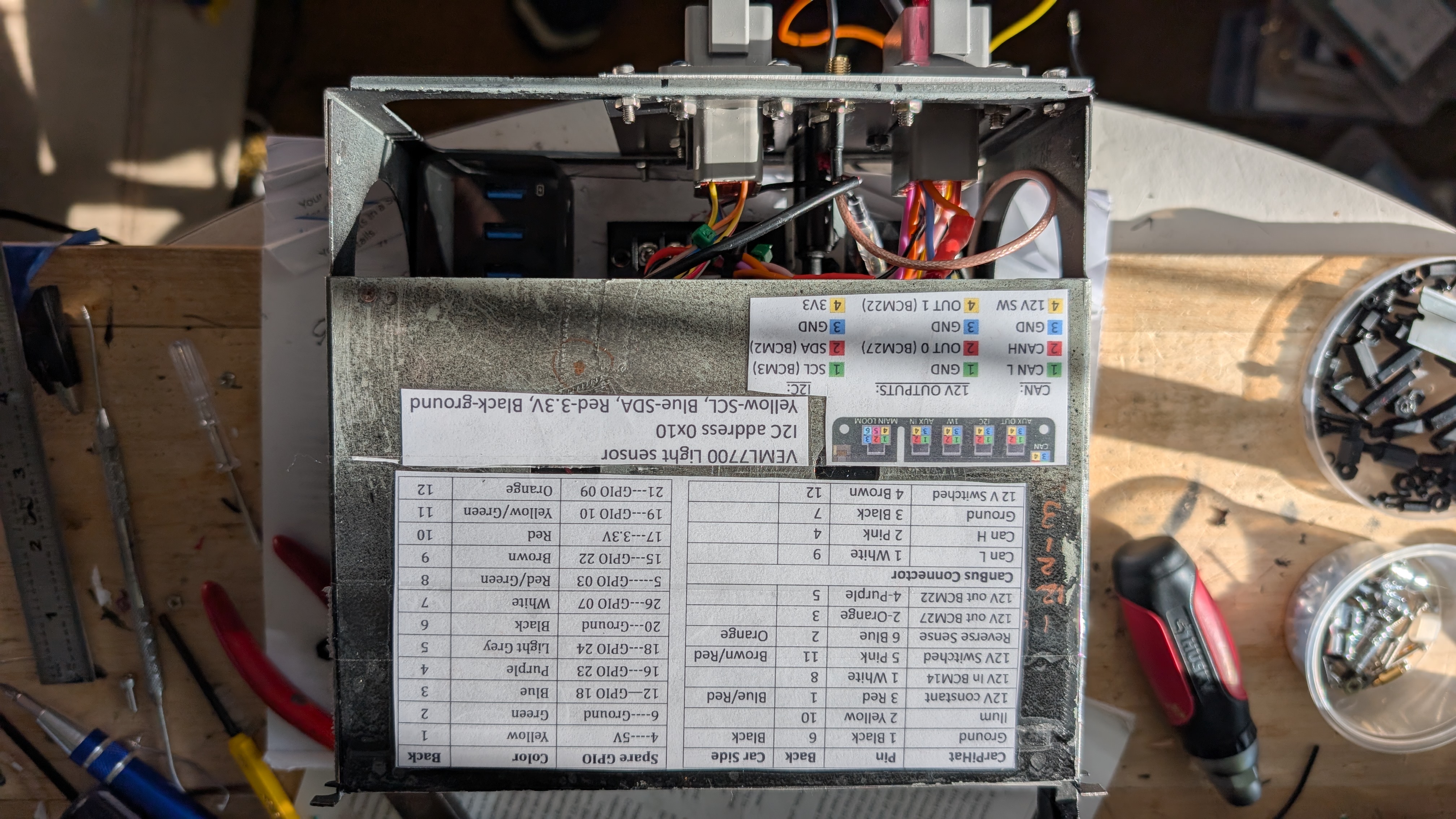

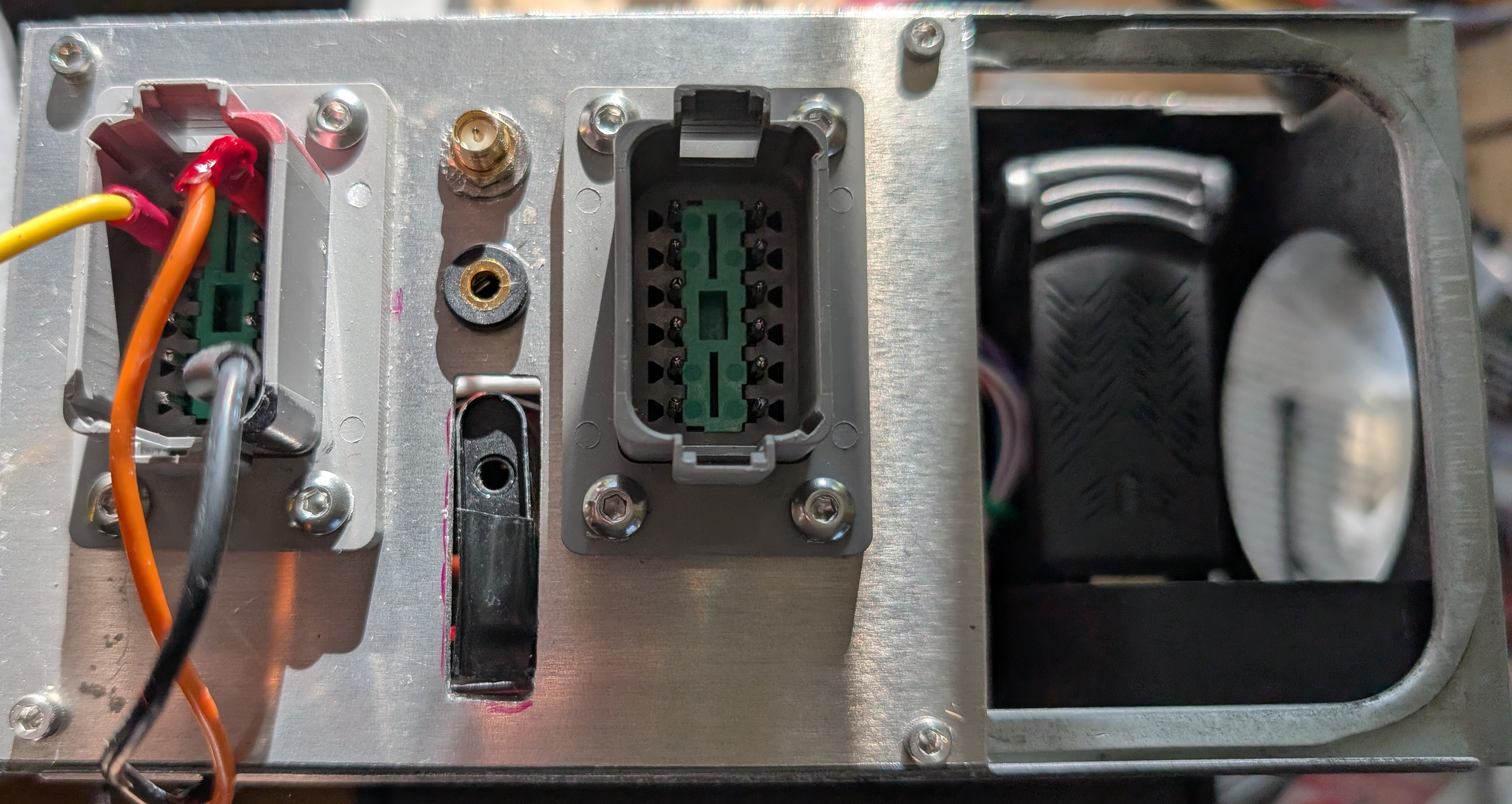

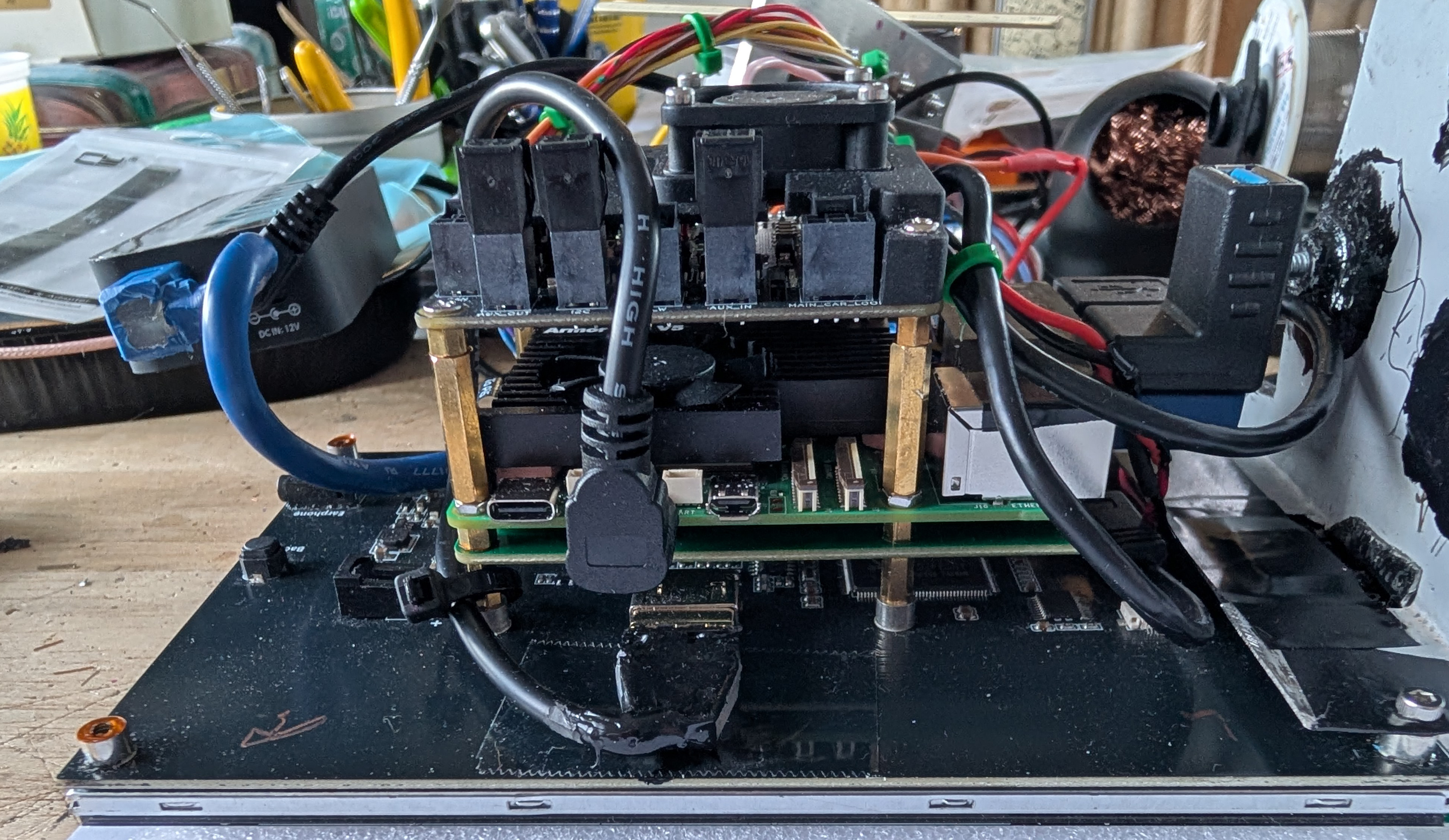

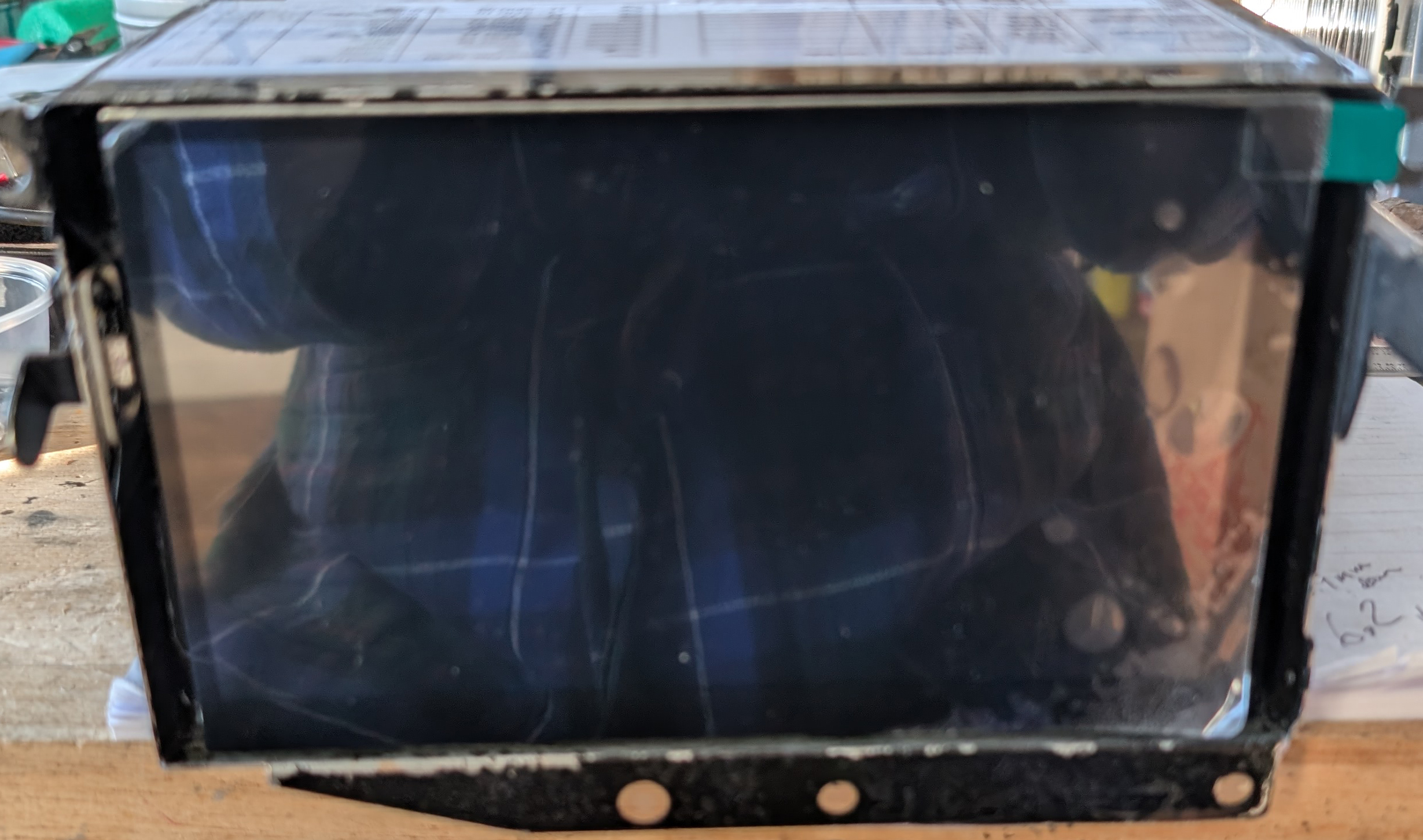

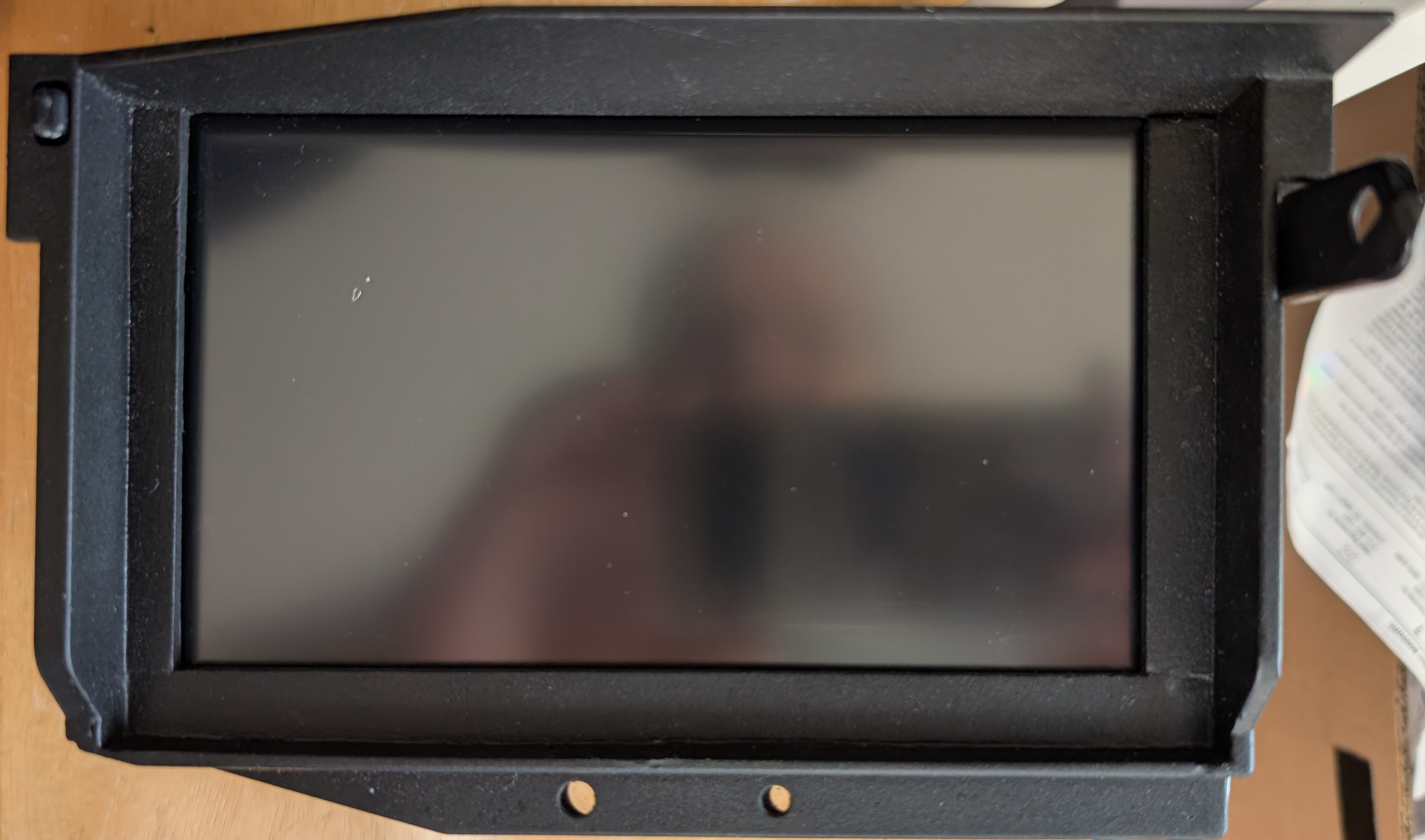

Some in process and some mostly finished RPI5/Hudiy installation photos in a double Din cage for a 1995 Subaru SVX. This is like the 4th version of this CarPC. A change since the photos was replacing the twisted HDMI cable with CYFPV HDMI adapters and ribbon cable. Parts in the cage include the display, the RPI5, a Pcie under-hat, A geeek heat-sink/fan and the CarPiHat Pro. Also in the cage is a relay to power a USB hub via the CarPIHat 5V output, a 7 port USB 3 hub (12V), a RTL-SDR and a currently unused 12V to 5V buck converter (original plan was to use a 5V hub and it may be used to power the screen if the USB powering proves inadequate). The back connectors are Deutsch DT series along with audio plugs and the SDR connector. On the hub are the SDR, a Bluetooth and a WiFi adapter to move the signal to a more open part of the metal cage. Planned for the hub is a line to a remote USB socket, a USB backup camera and maybe a USB rotary volume control (old school).

I need to stop doing hardware mods. I am replacing the relay powering the internal hub with one with a variable time delay to allow a bit (1-2 seconds) of startup before the hub is powered. Also cleaned up the assembly a bit while changing to a cm2606 device.
